Portable Recorder Unit



Recorder Units



RENTAL FLEET:

RUS-09, range 0-60 bar.

RUS-09, range 0-3,000 psi.

RUS-09, range 0-5,000 psi.

RUS-09, range 0-10,000 psi.

RUS-09, range 0-15,000 psi.

RUS-09, range 0-20,000 psi.

RUS-09, range 0-30,000 psi.



SPRING WOUND CLOCK:

available revolutions:

1 hr. / 4 hrs. / 8 hrs. /

12 hrs. / 24 hrs. (clockwise).





With the RUS-09 we supply diagram discs, 0-100%, available in the different revolutions matching the clock selected. Diagram disc diameter 223 mm., 9”.

Charts matching clock and range on request. Specific combinations might not available, in that case a 0 – 100% with matching clock range is supplied.

Only the discs used are charged. This also goes for the spare felt pen that comes with the unit.

The recorder unit is delivered with a recent calibration report, traceable to a national standard.

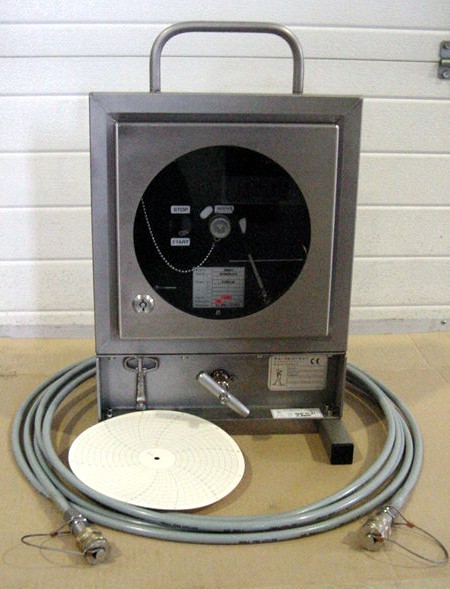

The RUS-09 recorder unit can be supplied with a high pressure hose.

Hoses are available in various lengths, starting at 7,5 meter.

Complimentary with the hose a loose quick connector, to connect to your object, is supplied. Please specify the connection required, for example ½”NPT.

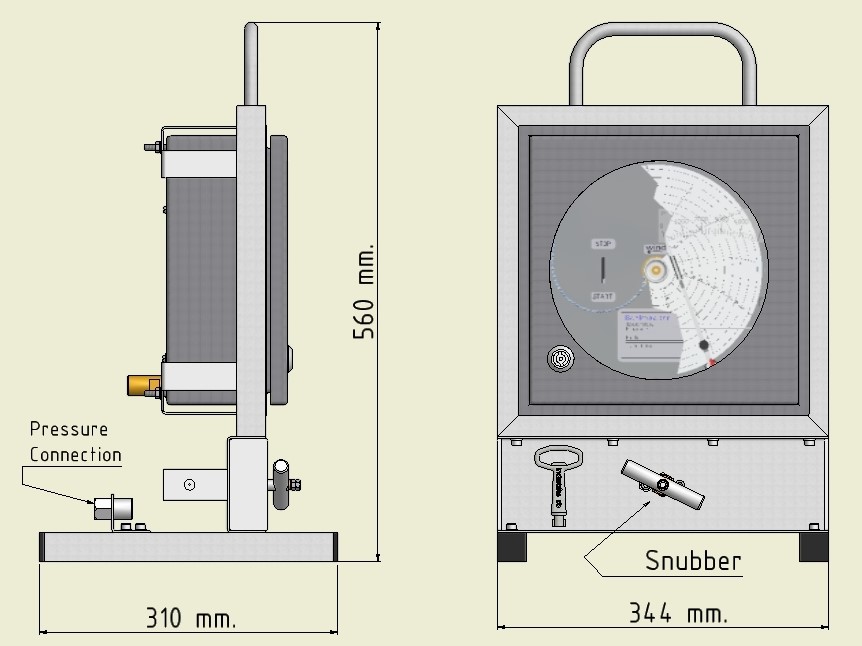

DIMENSIONS AND WEIGHT

UNIT CONNECTIONS:

Pressure Connection:

¼”NPT female (up to 10,000 psi)

Above: M16 x1.5H.P.



UNIT WEIGHT:

 All models:

 14 kg ( 31 lb.)






RUS-09 FEATURES:

  • Snubbing Valve

           will stabilize measurement in case of a pulsating pressure.

  • Stainless Steel Skid
  • High Stability

          due to the weight and construction of the unit.

  • Small Dimensions

          unit requires little space to set up and operate.



HOW TO ORDER:

Required information

# Range

# Clock

# Object connection

# Hose length

# Number of diagram discs
