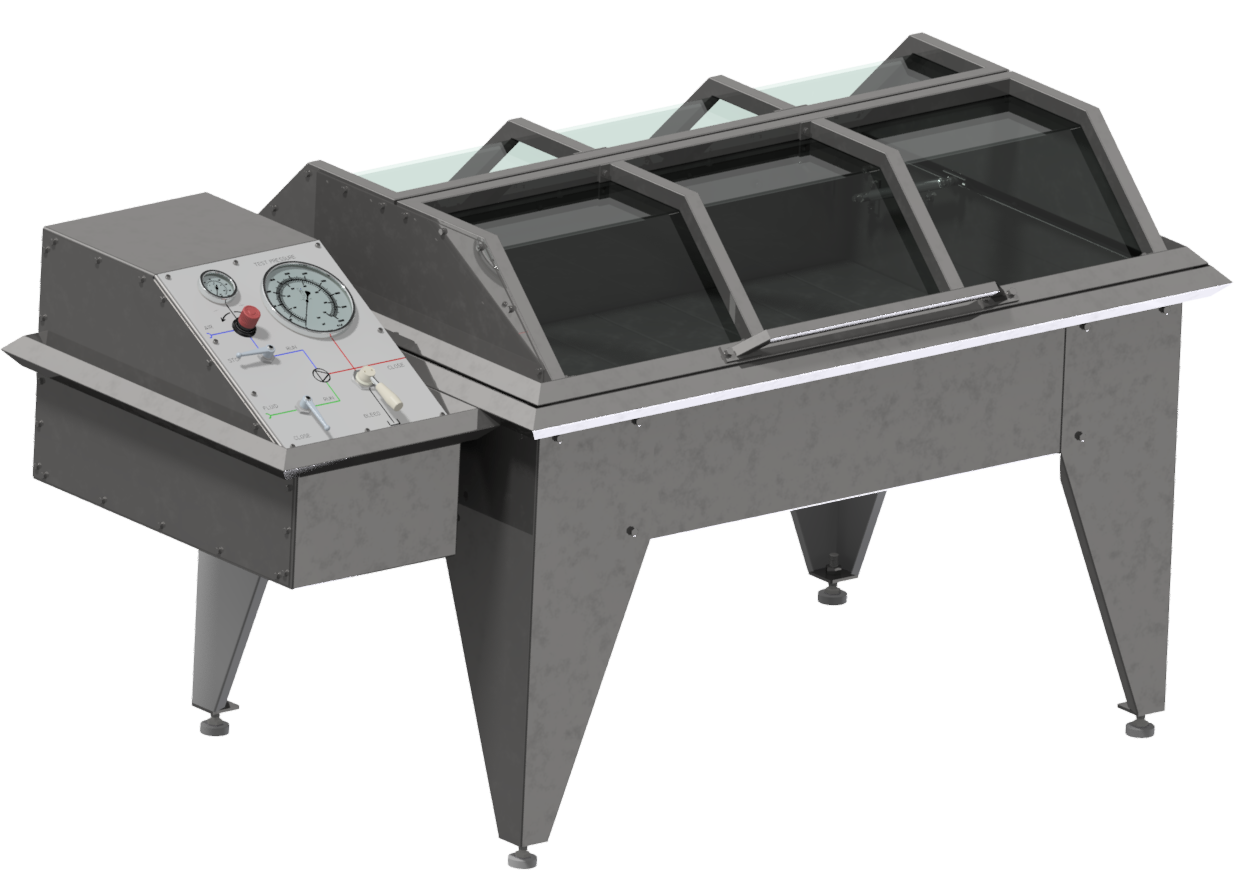

The unit is specially designed for pressure testing Hoses.
Standing straight and all the controls within hand reach.
Large test pressure gauge 160mm. (6”) with bar and Psi reading.
Because of the cover a clear view to the hose that is tested and still work in a safe environment.
Stainless steel frame and panels.
Air powered Backpacker LJH-80 series pump (patented).
|Maximum fluid output pressure||Maximum fluid output flow||Test gauge range|
1,0 litres / min
61 cu. In. / min
0 – 10.000 psi
(0 – 700 bar)
0,6 litres / min
36 cu. In. / min
0 – 20.000 psi
(0 – 1.600 bar)
0,4 litres / min
25 cu. In. / min
0 – 30.000 psi
(0 – 2.000 bar)
|8 bar (120 psi) air drive pressure or by hand||4 bar (60 psi) air drive pressure||Other on request|
Additional Equipment with the Unit
Digital Pressure Recorder for registration of eacht test. Click here to see more.
High Pressure Fittings
Backpacker can also supplies a wide range of fittings to make the connection to your Hose.
HOW TO ORDER:
# Testing Pressure
# Test Fluid
# Hose connection
